Mooer
Micro Series
Compact Effects Pedals
Harmony Pitch Shifter Pedal
These micro pedals in this series is the latest in a series of nano technology
in the guitar industry. Gone are the 3lb effects pedal days...
Modeled after some famous designs and tones, these pedals reflect
the energy and need of todays musicians while taking up
only a small footprint in your rig.
measuring only 3.6" long x 1.48" wide x 1.33"tall and weighs a mere .33oz
these will fill up your floorboard and give you tons of new sounds.
They are 9 volt powered and can be run together using the three types of
power accessories Mooer has to offer. Up to 5 can run on the standard model
8 on the second and up to 12 on the third power model.

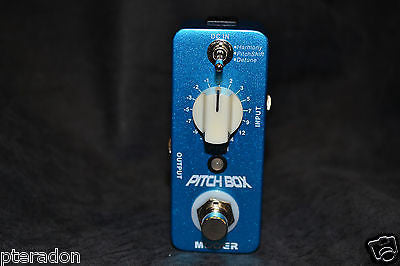

Controls on this Harmony Pitch Shifting Pedal are as follows
1) Rotary knob with -1 to -24 range
2) switch a) Harmony, b) Pitch Shift, c) Detune
3) Input jack
4) Output Jack
5) Power Adapter Input
3 Effects Modes: Harmony, Pitch Shift, Detune
Harmony: It shifts the pitch and mixes it back with the original signal to create a rich harmonic voice.
Pitch Shift: Outputs a precise polyphonic pitch shifting voice.
Detune: It slightly shifts the pitch and mixes it back with the original
signal to create a chorus-like effect, it rings a lot of nice spacy feeling.
original signal to create
Precise polyphonic pitch shifting
±2 Oct Pitch Range (16 optional parameters)
Full metal shell
Effects Modes: 3 (Harmony, Pitch Shift, Detune)
Input: 1/4” monaural jack (impedance: 470k Ohms)
Output: 1/4” monaural jack (impedance: 100 Ohms)
Power Requirements: AC adapter 9V DC (center minus plug)
Current Draw: 128 mA
Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
Weight: 170g
NOTE: these only run on AC power, so a 9V adapter will be needed
we offer these as well specifically for these items from Mooer
